Ubiquit USG: Native Dynamic DNS (DynDNS) Integration

Hello World!

This morning’s post will be quick, but hopefully useful. I recently wrote about my experience with acquiring and implementing a Ubiquiti Unifi Security Gateway (USG) as my edge firewall. That post is here.

One of the really handy things that the USG supports native Dynamic DNS integration with several different providers, including mine (DynDNS (now owned by Oracle). I know this isn’t a new feature for network gear to support but it is still a handy one in my book and I’m happy to have it.

The Dynamic DNS integration is incredibly easy to configure from the Unifi Controller interface. Shown below, you can find the Dynamic DNS configuration in the controller settings under Services. I am running version 5.10.25 on this controller. Also shown below is a listing of the supported dynamic dns providers.

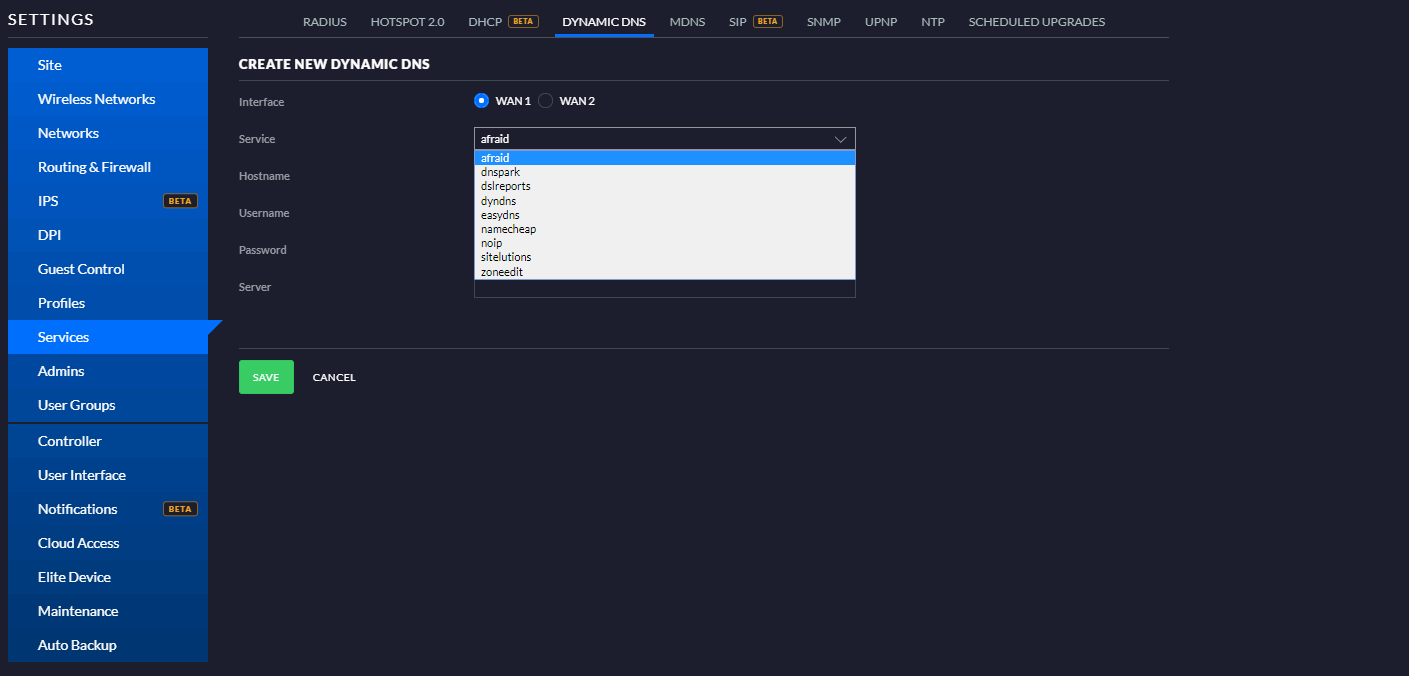

An example configuration for DynDNS is shown below. Click the image to enlarge. It is important to note that DynDNS does now require a nominal subscription for this service (roughly $55 a year).

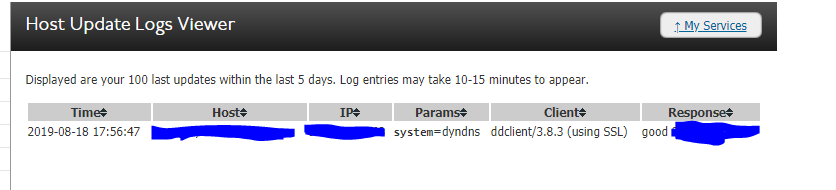

Finally, the host update logs from DynDNS (shown below). My particulars are blue’d out but you get the picture. This definitely beats running an agent on one of my Windows boxes.

I know that this isn’t an exceptionally complicated or exotic feature, but with traditional ISPs not giving out static IPs like they used to it is an important one.

I hope this post has been useful. If you have any questions, please post them in the comments below. More to come on the USG in later posts!

-Justin

Advertisements

Forgive Me Cisco for I Have Sinned (And I Liked It!)

Hello World!

If you’ve read any of my other posts, you have no doubt figured out, that I am a Cisco guy. Cisco’s products have kept me gainfully employed for many years (and hopefully for many years to come). I enjoy their technology but I also know they aren’t the only game in town.  I am also painfully aware of what it costs to play their game.

The Problem

Recently, my home network/lab Cisco ASA 5506-x died. This was a long expected outcome from a hardware clock malfunction that Cisco discovered a few years ago, you can read more about it here: https://www.cisco.com/c/en/us/support/web/clock-signal.html. If you have SmartNet support on your products this is a problem, but a covered problem. If, like me, you bought your products on Amazon or Ebay, you are screwed.

The Research

When the 5506-x died, I considered buying a Cisco Next Generation Firewall (NGFW) as a replacement (the 1010 would probably work). I’m not made of money and the thought of paying $800 on the gray market (or even from CDW) had me less than excited. I also considered buying a Sonic Wall, Juniper, or Palo Alto appliance but I don’t have support contacts/contracts for those brands and I want to be able to patch them (this is not a problem with Cisco). I then considered building an Endian or PfSense firewall but by the time I got the right appliance I would be out as much money as the Cisco option discussed above. With my home internet speed being over 100Mbps, I was going to need a very powerful box.  In case you are wondering what it takes to build a custom firewall, please see this link for sizing guidelines: https://www.firewallhardware.it/en/firewall-hardware-sizing-guide/. I was quickly running out of viable and reasonably professional options. It was then that I looked at my wall and found one more.

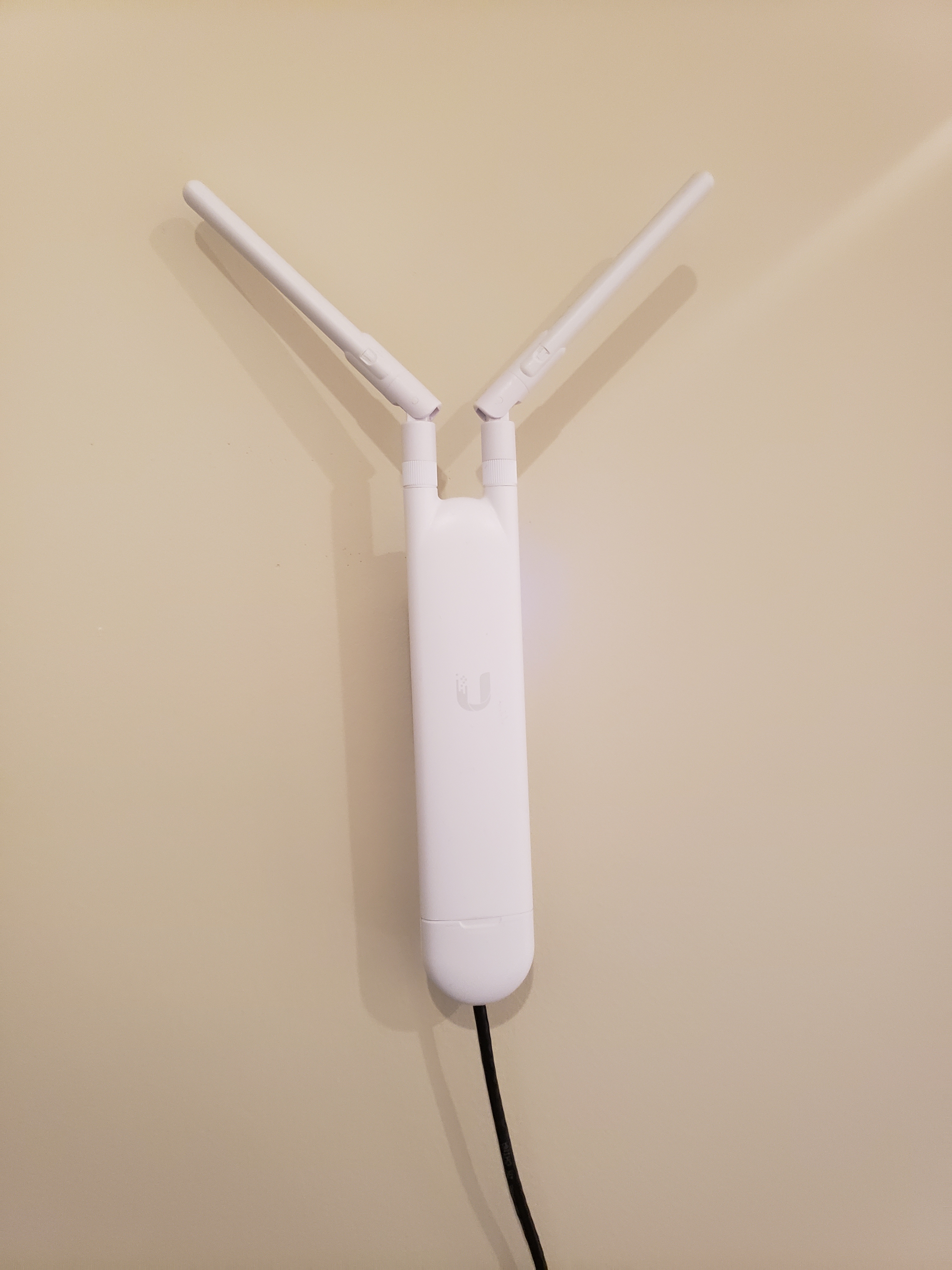

I started using Ubiquiti’s Unifi wireless access points a couple of years ago for a family business. I was impressed by the hardware and actually really liked the controller software as well. Being able to extend SSIDs across multiple access points without giving up backhaul bandwidth (assuming you have LAN drops where you need them) is a professional feature and one that I take advantage of often. Consumer grade multi-unit systems dedicate channels (and thus a portion of total throughput) to the backhaul communication between the “access points” and the base station. I also like the Ubiquiti price. The 802.11ac access point above, was $99 on Amazon. When it came time to put access points in my home the Ubiquiti option was an easy choice to make.

“If their access points are great, maybe I should give their firewalls a try.”

The Decision

The Unifi Security Gateway (USG) is a powerful platform. The architecture follows the versatile Edge architecture that Ubiquiti was originally known for. While the Edge platform devices have individual web interfaces and operate autonomously, the USG registers to and is managed by the Unifi Controller. Luckily, the USG does still include SSH/Console access to the powerful Ubiquiti CLI. The CLI is a cross between Unix, BSD, and Cisco’s IOS but once you understand it, it is very useful.

There are currently three (3) models of the security gateway available…

  1. USG
    • 3 1G ports
    • $138 + shipping on Ubiquiti Store
  2. USG‑PRO‑4
    • 4 1G ports (2 with dual-personality SFP ports)
    • $344 + shipping on Ubiquiti Store
  3. USG-XG-8
    •  8 10G SFP+ ports
    • $2,499 + shipping on Ubiquiti Store

I chose the USG. Small but mighty! Price aside, this little box will handle more bandwidth than I can currently throw at it*. With that said, the price is nice too.

*This is without IPS (currently beta) enabled. If you enable IPS the hardware offload is turned off and all packets are processed via software. This limits the throughput of each device as follows…

  1. USG: 85Mbps
  2. USG-Pro-4: 250Mbps
  3. USG-XG-8: 1Gbps

With the above numbers, I will probably be replacing my USG with a USG-Pro-4 (or whatever the next generation option is) in a few months. I want to take advantage of the IPS functionality but don’t want to limit my Internet bandwidth. Currently, this is a minor concern.

The Configuration

Setting up the USG took more time than you might expect. Part of this was my architecture; Ubiquiti likes their routing devices (the USG in this case) to be the end-all/be-all Layer 3 device in the network. In my network, that is not the case. I traditionally run my firewalls in transparent mode and use a Layer 3 “core” switch to handle the inter-vlan routing and segregation of traffic. I want the firewall to terminate the WAN/Internet connection and secure the connection as well as handle the NAT/PAT responsibilities but I want it to end there. My logical configuration is laid out in the image below.



As you can see from the logical diagram above, my USG sits in the “normal” firewall position between the provider NIU and my LAN. I am handling all VLAN routing and inter-VLAN routing on the 3750x. On the switch I have a static default-route pointing at 10.10.0.230 (the LAN IP of the USG) (shown below).

ip route 0.0.0.0 0.0.0.0 10.10.0.230

In the USG I have routes going back to the my 3750x (10.10.0.254) for the networks configured there (shown below).

static {
        route 10.10.10.0/24 {
            next-hop 10.10.0.254 {
                distance 1
            }
        }
        route 10.10.30.0/24 {
            next-hop 10.10.0.254 {
                distance 1
            }
        }
        route 10.10.100.0/24 {
            next-hop 10.10.0.254 {
                distance 1
            }

Finally I have a NAT rule in the USG allowing everything that goes out of eth0 (WAN) to be source NAT’d accordingly (shown below). This works well as I have a DHCP connection from my ISP.

rule   type  intf     translation
----   ----  ----     -----------
6001   MASQ  eth0     saddr ANY to X.X.X.X
    proto-all         sport ANY

Conclusion

I admit it is still early (as I’ve only had the USG in place for about a week), but I am impressed by that little box. No loss in throughput and I enjoy having the Internet statistics on my Unifi mobile application. The USG wasn’t my first choice but the more I do with it the more I am convinced it was the right choice for my environment.

Below are a few quick additions that I didn’t get to cover in this post, I plan on adding posts for these features later…

  • NAT/PAT for Cisco Unified Border Element (CUBE)
  • Dynamic DNS (DynDNS) native integration

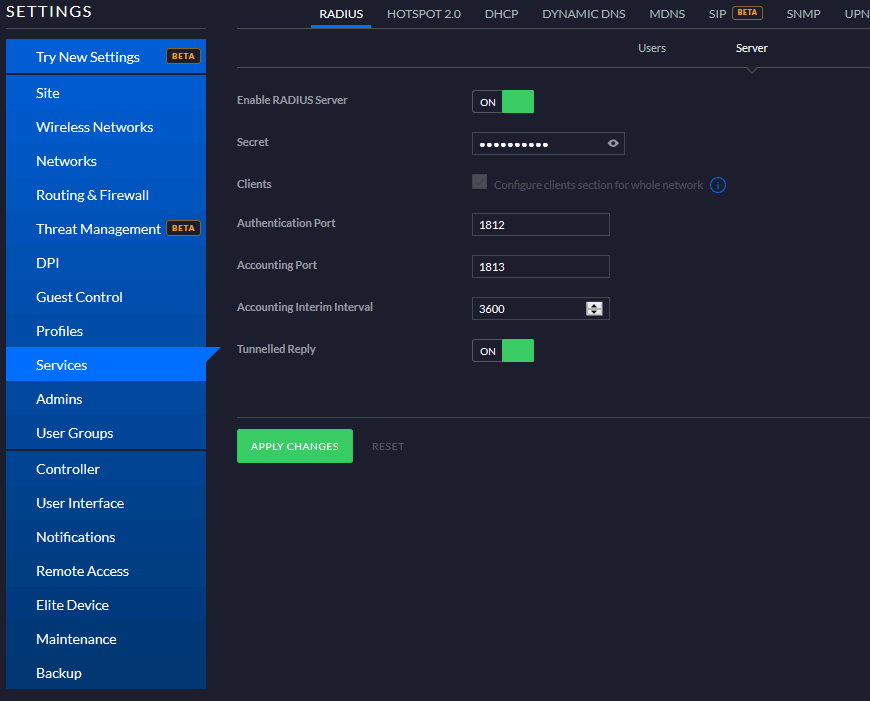

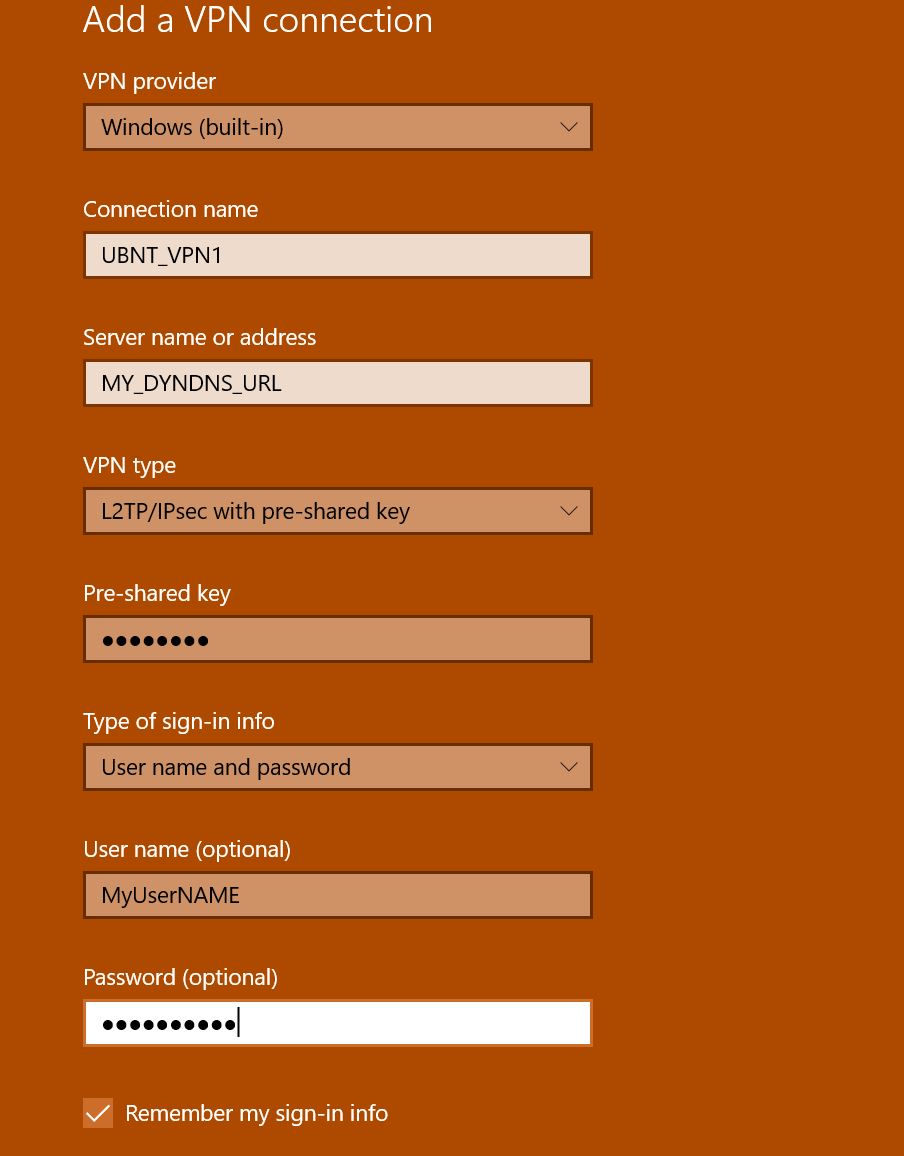

  • Quick and Easy VPN Client configuration

-Justin











CUCM: TLS 1.2 and Legacy Phones

Hello world!

Today’s post will be quick and dirty but hopefully useful.

In Cisco Call Manager (CUCM) version 11.5(1)SU3 support was introduced for Transport Layer Security (TLS) versions 1.1 and 1.2. Prior to this release 1.0 was the only supported version. With security being the driving factor in much of the IT world these days, there is a push to secure everything to the highest available level, that includes the Collaboration environment. I have many customers that want to take advantage of the higher TLS version levels and that is a good thing, but there are gotchas.

If you know anything about Cisco IP phone communications you know that several services; and specifically the Corporate and Personal directory service are pre-configured applets that run between the phone and CUCM. In the case of the directory service(s) they talk using 8443 which is a secure port and thus uses a certificate to communicate (along with the Trust Verification Service (TVS)). That certificate is directly encrypted with the help of TLS. Because support for the newer/higher TLS versions has only recently come into play there are several generations of IP phones that do not support anything above TLS 1.0 (or 1.1 in some cases). This list of legacy endpoints includes the 7900 series and Cisco’s previous “Cadillac” the 9900 series as well as others.

If you have legacy endpoints and change your TLS version to something above 1.0 you will notice that the directory services on those endpoints will fail with a “Host not found” error. What is actually happening involves a failed TLS handshake between the phone and the Trust Verification Service (TVS) on CUCM. Because the phone cannot communicate with the TVS using TLS 1.2 the handshake fails and the directory service cannot be accessed.

So what are your options?

  1. Replace your legacy phones, there is always a financial fix and this is it.
  2. You can manually create a directory service that talks HTTP and assign it to the phones. You could make this an Enterprise Subscription if you want everyone to use it. The URL that you should use is: http://YOURCUCMFQDNorIPHere:8080/ccmcip/xmldirectory.jsp. Since this is an HTTP service you can use the IP instead of the FQDN. This will allow the service to function whether name services are functional or not. This will require user training but may make the most sense depending on the environment.
  3. Revert to TLS 1.0. This sounds easy, but there are gotchas here too.

The gotchas of going back…

Switching from TLS 1.0 to TLS 1.1 or 1.2 (If you are going to change, go to 1.2) is a relatively straight forward process. You log into the platform CLI of your CUCM publisher and any subscribers and issue the following command set tls min-version 1.2. When you enter this command you will be asked to confirm and once confirmed (with yes) the system will restart. This happens immediately and should only be done during a maintenance window.

Switching back from TLS 1.2 to 1.0 follows the same steps with the same command and the same reboot process. However, when you switch back from a higher TLS version to a lower TLS version, anything that was encrypted using that higher TLS version becomes invalid. This includes certificates (which automatically regenerate) and also the application UI password store  (including your CCM Administration credential). This password must be reset from the CLI and changed to something different before you can log into the system again. Note that this does not change your Prime License Manager (PLM) admin password if co-resident with your CUCM.

Security is important and continually making our security better is the only way to prevent incidents. With that said, proper planning will stop security changes from turning into outages.

Cisco’s TLS 1.2 Compatibility Matrix: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/uc_system/unified/communications/system/Compatibility/TLS/TLS1-2-Compatibility-Matrix.html

CUCM: The Logout Profile

Good Morning Readers!

Today’s post is quick and dirty. If you work in an environment where Extension Mobility is widely used, the content of this post is probably common knowledge and you can stop reading here if you like.

For those curious about Extension Mobility, there are a ton of resources on the Internet that can show you how to use and configure it as well as how it impacts your CUCM licensing. If you don’t know what CUCM stands for, this probably isn’t the post for you.

I was recently dealing some odd behavior from one of the 7841 IP Phones in my lab. Despite the fact that I had logged out my Extension Mobility (EM) user, their details (their User Device Profile) were still showing up on the physical phone. I reset the phone, checked the cluster for DB errors, and scratched my head a lot. I then proceeded to smack my head when I remembered the logout profile configuration in CUCM.

If you know anything about Unified Communications Manager Express (UCME), you know that the logout profile is very common on this platform. EM cannot exist on UCME without it. In CUCM we get spoiled, we can use existing device configuration details and do not have to specify a logout profile, there is however still a place for one.

In a perfect world a logged out EM configuration (in CUCM) should look like this:

This denotes that when a user logs out of the phone, the phone will use whatever configuration data exists in CUCM.

If however, a logout profile gets set (as shown below), the phone will display that profile upon an EM logout.

This is exceptionally confusing when the profile that was just logged out happens to also be the logout profile!

Obviously this was a misconfiguration on my part. Instead of just checking the box to enable Extension Mobility, I also specified a user profile. This lead to several minutes (a good half hour) of me troubleshooting a problem that inevitably had no problem at all.

Thanks for reading and hopefully you got some enjoyment laughing at my screw-up.

-J



My Linux Logging Adventure: RSyslog

Hello World!

If you are still reading after the title of this post, I commend you. Writing about logging, and more specifically, a syslog server is difficult to get excited about and I can only assume that it is equally hard to get excited about reading.

I should preface this by saying I am not a “Nix” guy. I’ve dabbled in nearly every flavor of Linux over the last 20 years or so but I’m definitely not a Linux over Windows guy (with the notable exception of purpose-built hardened linux appliances) nor will I ever claim to be. With that said, I like the simplicity of Linux specifically in the utility space. A Linux TFTP/FTP/SFTP server makes far more sense than a Windows box doing the same job, as does a Linux jump box (depending on what you are jumping to). To that end, when I decided to add a syslog server to my lab/development environment; Linux was far and away the best choice.

I am choosing to use Ubuntu as my flavor of choice for this particular Linux project as I generally like the look and feel of it. I am using the server distro and while I am now running 18.0.4 LTS, I did not start out that way. I tried 18.0.4 as a fresh install in my virtual (VMWare ESXi) environment but found that I could not get past configuring the network interface in the setup UI. I would verify the interface (it was correct) and then setup my IP address (static in this case, although I did also try DHCP). This seems simple enough, but once I attempted to save my network settings the UI would reset and I would once again be back at the start of the setup process. I experienced this several times before I gave up and went another way. The “Other Way” in this case was to first install release 16.0.4 and then allow the system to upgrade to 18.0.4. This worked without problem.  I just so happened to have 16.0.4 in my software repository but I’m sure I could have upgraded from other releases as well. In doing some research, it seems that Ubuntu introduced a different network configuration manager in 18.0.4 and I’m guessing that it was not playing nice with ESXi.

Now that I have my Linux platform, the installation of the RSyslog server packages is unimpressive. The command to fetch and install the package on Ubuntu is listed below.

apt-get install rsyslog

Once the install is complete the configuration can begin. If all you want is an external place to drop your syslog data this will take no time at all.

In /etc you’ll need to edit the rsyslog.conf file. For the most basic functionality you need to make sure that RSyslog is listening. In my environment UDP for syslog is fine and I also use the standard port (514).

When you initially open the configuration file you’ll notice that UDP (and TCP as well) are commented out. This means that RSyslog is only processing local syslog events (See snippet below).

# provides UDP syslog reception
# module(load="imudp")
# input(type="imudp" port="514")

# provides TCP syslog reception
#module(load="imtcp")
#input(type="imtcp" port="514")

Since I am using UDP, I want to un-comment the module and input lines associated to that protocol (see snippet below).

# provides UDP syslog reception
module(load="imudp")
input(type="imudp" port="514")

Once I have done this, I can restart the RSyslog service and my server is now ready to receive. The restart command is below for your reference.

sudo systemctl restart rsyslog

Upon a successful restart (assuming there is a device setup to send syslogs), I should see new messages in my syslog file located at /var/log/syslog (snippet shown below).

Mar 18 06:25:02 linutil01 rsyslogd: [origin software="rsyslogd" swVersion="8.32.0" x-pid="1051" x-info="http://www.rsyslog.com"] rsyslogd was HUPed
Mar 18 15:30:01 vmhost02.sprnet.local Rhttpproxy: message repeated 2 times: [ verbose rhttpproxy[FFFC3B70] [Originator@6876 sub=Proxy Req 01543] Resolved endpoint : [N7Vmacore4Http16LocalServiceSpecE:0x1f08e318] _serverNamespace = /sdk _isRedirect = true _port = 8307]
Mar 18 15:30:01 vmhost02.sprnet.local Rhttpproxy: message repeated 2 times: [ verbose rhttpproxy[56E54B70] [Originator@6876 sub=Proxy Req 01543] Resolved endpoint : [N7Vmacore4Http16LocalServiceSpecE:0x1f08e318] _serverNamespace = /sdk _isRedirect = true _port = 8307]

In the above snippet, there are three entries. The first entry is from my local Linux box (linutil01) and the next two are from one of my VMWare ESXi hosts (vmhost02.sprnet.local).

If you have a small environment and only a handful of devices sending to your syslog server, the above configuration may be all you need. If, like me, you want something that is more organized, I think I can help.

While there are several ways of accomplishing organization in RSyslog, I am choosing to organize my logs by hostname and service name. For the purposes of this example, I have two ESXi  hosts that are logging to the server.

To start, I need to go back to the rsyslog.conf file that I wrote about earlier. I need to tell the server what logs I want to be stored and where/how I want to store them.  I can do this with a template. I’ve posted the template configuration snippet below.

# Templates
$template RemoteHost,"/var/log/%HOSTNAME%/%PROGRAMNAME%.log"
#Remote Logging
$Ruleset remote
*.* ?RemoteHost
#Bind Ruleset to UDP Listener
$InputUDPServerBindRuleset remote
$UDPServerRun 514

In the snippet above, I have my template name RemoteHost and I have where I want to store/categorize my logs /var/log/%HOSTNAME%/%PROGRAMNAME%.log. The %HOSTNAME% and %PROGRAMNAME% sections are variables and are filled in by the servers internal syslog facilities. Note that I have logs being stored in the /var/log/ directory. If you want to store your logs here you will have to change ownership properties of the directory (snippet below) so that syslog can create and write there. I also have a Ruleset that I am binding my template to. In my configuration that ruleset is called remote. I bind my template to the remote ruleset which includes every message coming into the server on UDP port 514.

cd /var && sudo chown syslog:syslog log

Once I complete the configuration above and restart my RSyslog service, I should start seeing directory entries like the ones shown below in my /var/log/ directory.

drwxr-xr-x 2 syslog syslog 4096 Mar 16 13:56 vmhost01.sprnet.local
drwxr-xr-x 2 syslog syslog 4096 Mar 16 13:55 vmhost02.sprnet.local

If I go into one of these directories, I should see several different .log file entries (snippet shown below).

-rw-r----- 1 syslog adm 0 Mar 16 13:55 bootstop.log
-rw-r----- 1 syslog adm 10263 Mar 16 11:15 cimslp.log
-rw-r----- 1 syslog adm 97516 Mar 18 07:01 crond.log
-rw-r----- 1 syslog adm 10474 Mar 18 07:01 heartbeat.log
-rw-r----- 1 syslog adm 777730 Mar 18 07:00 hostd-probe.log
-rw-r----- 1 syslog adm 5345 Mar 18 06:01 ImageConfigManager.log
-rw-r----- 1 syslog adm 0 Mar 16 13:55 init.log
-rw-r----- 1 syslog adm 3033018 Mar 18 07:01 Rhttpproxy.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 root.log
-rw-r----- 1 syslog adm 0 Mar 16 13:55 sfcbd.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 sfcbd-watchdog.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 sfcb-ProviderManager.log
-rw-r----- 1 syslog adm 6384 Mar 18 06:36 sfcb-vmware_raw.log
-rw-r----- 1 syslog adm 16384 Mar 16 13:56 slpd.log
-rw-r----- 1 syslog adm 171223 Mar 18 06:35 smartd.log
-rw-r----- 1 syslog adm 47693 Mar 18 07:00 syslog.log
-rw-r----- 1 syslog adm 128 Mar 15 16:05 tmpwatch.log
-rw-r----- 1 syslog adm 4096 Mar 16 13:55 vmauthd.log
-rw-r----- 1 syslog adm 6189399 Mar 18 07:01 vmkernel.log
-rw-r----- 1 syslog adm 827731 Mar 18 07:00 vmkwarning.log
-rw-r----- 1 syslog adm 0 Mar 16 13:55 VMware.log
-rw-r----- 1 syslog adm 3633994 Mar 18 07:01 vobd.log
-rw-r----- 1 syslog adm 69577951 Mar 18 07:01 Vpxa.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-cdp.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-dcbd.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-net-lacp.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-net-lbt.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-nscd.log
-rw-r----- 1 syslog adm 0 Mar 16 13:55 watchdog-openwsmand.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-sdrsInjector.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-smartd.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-vobd.log
-rw-r----- 1 syslog adm 0 Mar 16 13:56 watchdog-vpxa.log

I now have an organized version of the chaos that syslog directories often hold. I can look at the systems and services that I need to without sorting through all of the other notifications that often get in the way.

I hope this has been helpful to someone, there are a lot of great resources online and mine is simply a collection of what worked for me. Thank you for reading, please ask any questions in the comments section and I’ll do my best to respond in a timely manner.

-Justin

















CCIE Collaboration Lab: My Return Trip

If you follow this blog regularly (it says a lot about you, but that is for a different post) you know that last year, 2016, I took my first crack at the CCIE Collaboration practical lab exam. I took it in RTP (North Carolina) and it royally kicked my ass.

It is now nearly 12 months later and I am preparing for my second attempt. This year I have built my own lab instead of renting rack space from INE (who I believe I still owe money to from last year, but so far they haven’t come to collect). I am taking the exam on April 25 in RTP once again and while I am going to give it my very best shot, I am taking it because I honestly have no desire to attempt the written again and if I wait more than 12 months to attempt the lab my current written will be invalidated.

I’ll probably have more posts as the weeks draw closer, but the most important thing to note so far is that it is getting cheaper to purchase your own lab hardware. With Cisco coming out with the 44xx and 43xx ISR G3 routers the 29xx ISR G2 routers, which are still the hardware of choice for the current lab iteration, have become cheaper in the secondary market. I’m not saying that building a lab is cheap, by any means, but at least more folks now have that option. In my case,  my lab contains the following…

  1. 3825 – PSTN/BB Router. This is running CME for PSTN emulation. I am running PRIs to all 3 of the site routers; T1 PRIs the US sites and an E1 to the international site, I am using fractional PRIs to save on DSP resources.
  2. Dell Server 72GB Ram, Dual Xeon, SSD USB Drives (new addition) – This started life as a very weird CS-24TY but has now been revamped and runs all of my lab VMs easily.
  3. 2921 for HQ (2) PVDM-3 16 DSPs (this is actually enough for homogeneous video conferencing).
  4. 2821 for Site-B PVDM-2 64 DSP (good for voice only) (Generally Site-B is H.323 and possibly CUBE, a 2821 will run 15.1.x code which is not perfect but is close enough for that location). If I am asked switch/conference video at Site-B, I am S.O.L.
  5. 2811 for Site-C (CME)… I actually just ordered a 2911 and ISM-SRE-300 module to replace the 2811 as there are some serious differences between 15.1.x CME and 15.2.x and later CME i.e. CME 9/10.5/etc. I have a CUE module in the 2811 but I made the decision to spend money and get something closer to actual.
  6. 9971 phones as required (cheap enough used) and 7962 phones instead of 7965s as the differences between the two SCCP options are not that great and it saves some money.

In the back-end of the lab I also have a 3750 switch that I am using as a layer 3 WAN cloud instead of Frame Relay (which only matters in the QoS sections) and a 2960G PoE switch which I am using for phone power. I know the syntax is different but I cannot yet justify spending money or effort to aquire PoE  EHWICs.

I also have another Dell Server which hosts my “production” 11.5 CRS infrastructure which I can use for BB SIP calls as needed.

My setup is not perfect but perfect honestly costs to much. The fact that I can come down to my basement and practice whenever I want without having to reserve pricey rack space makes my setup perfect for me.

How about you? Do you have a lab? What are you running? Any suggestions? Comments? Questions? Leave them below!

-Justin





UCCX Series: Managing Your Audio Prompts

As long as there have been contact centers utilizing UCCX, there have been audio prompts. As an engineer, you know them because you have probably had to help create them, remaster them so that they actually work or even in a pinch record them yourself. We all have at least one number that we can call and hear our own voice welcoming callers to a bank, bakery or auto repair shop. Prompts are a necessary evil, but why are they so evil? Why didn’t Cisco give us a recording application? Why did they point us to the horrible “Media Master” interface in Unity/ Unity Connection as our default option?  While I cannot answer those questions, I can provide a better solution.

A Prompt Management Application…

Think about it, we have everything we need. UCCX provides annunciation, menu infrastructure and the ability to build/record files right out of the box. We have everything we need, we just need to put it together.

While the purpose of this blog is not to give, but rather to inspire, there are places online where you can find prompt management applications that others have written. I’ll show you the ins and outs of mine in the hopes that perhaps you’ll want to build your own.

Prompt Record 1

After the Start, Accept (if you don’t know why these two are important a UCCX basics course is probably your first best bet) we set a temporary path in the memory for our new prompts (shown above, click to enlarge), just because you record a prompt does not mean you have to save it. This application bases prompt save names off of 4 digit numbers. Friendly names for prompts are great but not all that useful from a telephone keypad. After defining that temporary path I ask my callers for a PIN, this is a simple authentication step that UCCX has built into its arsenal of objects. If you want to get more secure, you can base the authentication on a User ID and password from the UCCX user list but I don’t have a need for that here. TIP: If you make the PIN a parameter in your configuration, you’ll be able to change it easily from the application page in UCCX.

Once a successful PIN is entered, I give my caller two choices; record a new prompt or listen to an existing prompt. To me, this is a big deal. There are some applications that only allow the caller to record a prompt, that is fine, but for me the ability for the caller to listen to an existing prompt before changing it makes the application much more powerful.

Prompt Record 2

The image above (click to enlarge) shows the listen section of the application. If you store your prompts in the default paths i.e. en_US or whatever language you need this is very simple and straight forward. If you store prompts in multiple hierarchical folder locations you’ll have to call those locations out in your script. As you can see, this works with a formula that takes the prompt name (number) entered by the caller and adds .wav to the name.

Recording prompts take a bit more programming but as you’ll see below it is relatively straight forward (click to enlarge).

Prompt Record 3

If the caller wants to record a prompt, the first thing that this application does is ask them to record it. You could ask for a file name first but technical order of operations is to create and then save so this way makes more sense. Once the caller records their prompt, the application allows them to replay, re-record, give up and go to the main menu or save the prompt. If they choose to replay (the importance of that temp directory from before) we replay the temporary prompt from memory. If they choose to save, that is where the magic happens.

Prompt Record 4

As you can see above (click to enlarge), the save function of the application utilizes several different parts. First, we ask the caller for a prompt name (number). Besides being practical from a telephone keypad, the prompt numbering method allows you to take a list of prompts and number them for your vocal talent. As they go through and record and save, they are creating a script that can be referenced weeks, months and years down the road as verbiage from the prompts has to change. Once the prompt name (number) is entered we play a confirmation and ask the caller to confirm the save. If confirmed, we write the prompt in the prompt directory (default or specified) and the action is complete. To make the saving of the prompt possible, we do have to give the application administrative rights. What this means is that we have to reference an administrator username and password in the script. TIP: Create an administrator user and password that is exclusively used by your script, do not use your primary admin user.

The last screen shot that I want to share is the variable list from the prompt management application (shown below, click to enlarge). I’ve blocked out usernames and passwords but you get the idea. You can see all of the prompts you need for the prompt management application, this gets into the philosophical discussion of which came first; the prompt or the prompt recording application.

Prompt Record 5

Once your script is complete, you simply create a UCCX application and build a trigger.

While it takes some work to build initially, you then have an application that you can deploy on all of your UCCX builds in the future. It is a quick and easy way to give your customers or stakeholders value-add or at the very least impress someone and I promise it will make your life easier as you administer these systems going forward.

Thanks for reading, if you have questions post them below and we’ll have a discussion.

-Justin
